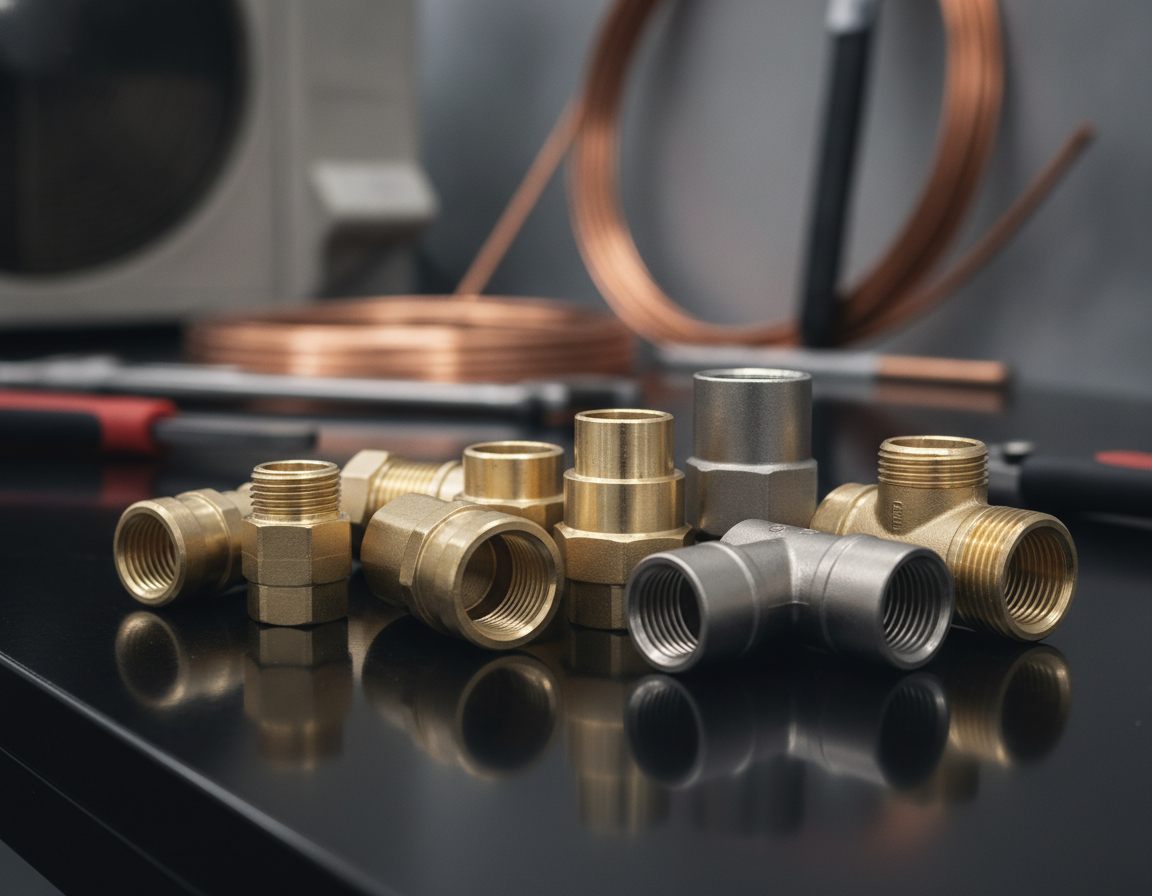

Female compression fittings give installers a clean and efficient approach for connecting pipes and tubing. They do away with the need for solder or welded joints. This guide explains the function of female compression fittings, explaining how the compression nut and ferrule ensure a tight seal. It also emphasizes their importance in both plumbing and HVAC applications.
3/8 Compression Coupling
Choosing high-quality pipe fittings can significantly reduce energy losses. That helps prevent refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, need robust connections. Matching the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is critical for long-term system performance.
In many plumbing systems, PEX or PVC with compression fittings are frequently used for their ease of service and low heat exposure. On the other hand, refrigeration lines require fittings that can handle thermal fatigue and hold a seal across a wide temperature range. InstallationPartsSupply.com and its product lines help meet these needs, stocking common sizes and parts such as ferrules and compression nuts.
Main Points
- A Female Compression Fitting uses a compression-nut and ferrule assembly to seal without soldering.
- Matching the fitting material correctly—brass, copper, stainless, PVC, or PEX—reduces the risk of corrosion and failure.
- Well-matched fittings help cut energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Compression fittings guide resources and suppliers like InstallationPartsSupply.com support part selection.
- Examine ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
How Compression Fittings Work In HVAC And Plumbing Applications
Compression fittings fasten pipes and tubing without solder or welding. They are commonly used on copper, PEX, PVC, and stainless lines where heat or flame is undesirable. Many installers purchase parts from Installation Parts Supply to improve consistent quality and fit.
What A Compression Fitting Is And How It Works
A compression fitting relies on a nut and a ferrule olive pressed against the pipe by the fitting body. The tightening action compresses the brass ferrule or sleeve, which locks onto the outer pipe and forms a seal. This setup explains the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
How HVAC Fittings Differ From Plumbing Fittings
HVAC fittings must handle refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings are designed around potable water, wastewater, and pressure from building systems. When comparing HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC equipment such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Compression Fitting Materials: Brass, Copper, Stainless Steel, PVC, And PEX
Copper fittings deliver excellent thermal conductivity and corrosion resistance. Brass parts such as ferrules offer resistance to wear and are common in many compression fittings. Stainless steel is suitable for corrosive or high-pressure environments.
PEX compression is popular for domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC is still a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Component Material | Primary Use | Advantages | Limitations |
|---|---|---|---|
| Copper | Refrigerant piping and potable water | Durable, conductive, and easy to solder | Higher price and possible denting or damage |
| Brass | Compression fittings, nuts, and ferrules | Strong machinability with corrosion protection | Galvanic corrosion risk if poorly matched |
| Stainless Steel | High-pressure or corrosive systems | Very durable, corrosion-resistant | Costlier with tougher fabrication |
| PEX Tubing | Residential hot and cold water | Freeze-resistant with flexible handling | Requires correct inserts and compatible fittings |
| PVC Components | Drain, low-pressure chilled water | Inexpensive, easy to install | Limited in hot or pressurized applications |
Fitting Selection, Energy Efficiency, And Leak Prevention
Choosing the right fitting reduces leak risk and maintains system pressure. In refrigeration circuits, a poor joint can release refrigerant and lower efficiency. Leak-tight joints and material compatibility cut maintenance and lower energy waste.
Using correct ferrule olive type and matching copper fittings or PEX compression hardware helps prevent galvanic corrosion and thermal fatigue. This approach supports service life and keeps HVAC and plumbing systems running efficiently.
Female Compression Fitting Basics
A female compression fitting connects and seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This connection provides tight connections without soldering, making it common in plumbing and HVAC. Adapters and unions support quick disassembly for service or instrument changes.
Female Compression Fitting Definition And Configurations
A standard assembly contains a female compression nut, a ferrule olive, and the fitting body. The nut connects to the fitting body and compresses the ferrule to grip the tube. Many installations rely on unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Compatible Materials And Uses
Brass and copper are standard for refrigerant fittings and hot-water lines due to their ability to withstand thermal cycles and resist deformation. Stainless steel is chosen for high-pressure or corrosive environments. PEX and PVC are often used in condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Plumbing, HVAC, And Instrumentation Uses
In standard plumbing work, female compression fittings link stops, valves, and supply lines without solder. In HVAC, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
Comparing Female Compression Fittings, Male Fittings, And Adapters
Female compression fittings receive a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter allows technicians interface service valves and gauges to the system. Matching materials helps prevent galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Component | Usual Material | Usual Application | Maintenance Note |
|---|---|---|---|
| Female Compression Nut | Brass alloy | Plumbing feeds and shutoff connections | Replace if rounded or cracked |
| Ferrule sleeve | Brass or stainless | Forms a seal on copper, brass, and some PEX | Often should be replaced during service |
| Compression fitting body | Machined brass or stainless | Cooling systems and instrument lines | Match material to refrigerant and pressure rating |
| Small male compression fitting | Brass or copper | Male connection for female ports and small lines | Verify seat and thread compatibility |
| 3/8 service valve adapter | Brass construction | Gauge and manifold connections | Match seals to refrigerant fittings |
| Installation Parts Supply source | Various | Source for replacement nuts, ferrules, and kits | Match ferrules and nuts to protect system life |
Compression Fitting Types, Sizes, And Adapters For Plumbing And HVAC
This section delves into the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Professionals work with couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. The selection of these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and related unions support the creation of removable joints for maintenance and testing. Couplings are best suited to straight connections, while compression unions are more suitable for components that need to be disconnected without disrupting the line. For short runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters are used for tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting is used to connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs offer a wide range of these components, helping provide quick access on job sites.
Proper sizing is critical, depending on the tube’s outside diameter and the ferrule and nut set. Confirm that the female compression fitting size matches the tube OD to prevent leaks. For 3/8-inch applications, verify ferrule compatibility and torque specifications. Before final selection, check the system’s maximum pressure and temperature ratings before making a final selection.
The Max Adaptor and 3/8 Valve Adapter are useful for connecting gauges, service ports, and small refrigerant lines. These adapters simplify the process of charging and diagnostics in HVAC systems. In compact HVAC systems, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Choosing material involves a trade-off between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Brass and copper are good for refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PEX and PVC suit low-pressure condensate and water lines but not for high-pressure refrigerant service.
Fitting sustainability is affected by leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Sourcing reliable parts from reputable distributors reduces failures and minimizes long-term environmental risk.
Use the comparison below to select between common options by application, pressure, temperature, and reusability.
| Fitting Type | Typical Use | Typical Max Pressure | Operating Temperature Range | Service Reuse |
|---|---|---|---|---|
| Brass compression coupling | Instrument lines, small water lines, and refrigeration uses | Up to 3,000 psi depending on specification | Approximately -65°F to 250°F | Limited reuse if the ferrule remains intact |
| Compression Union brass/stainless | Serviceable joints, maintenance access | Up to 2,500 psi | Approximately -65°F to 300°F | High; designed for disconnects |
| 3/8 compression connection | Small-diameter water, instrument, and refrigerant lines | Rating varies by system and material | Check material spec for HVAC use | Moderate; often replaced during servicing |
| Small male compression fitting | Adapter for gauges and service valves | Depends on refrigerant-rated brass or stainless construction | Appropriate for typical HVAC temperature cycles | Reusable when not damaged |
| Max Adaptor brass/stainless | Gauge and valve interface coupling | High when designed for service-tool use | Designed around HVAC service cycles | Built for repeated connection and removal |
| PEX/PVC fittings | Condensate and low-pressure water | Low pressure only; not for refrigerant service | Usually 32°F to 140°F | Sometimes reusable, but UV can reduce life |
When sourcing parts, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Ensure that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Good installation begins with clean, square pipe ends and the right parts. On HVAC refrigerant circuits, use copper and brass. For condensate or chilled water, PVC or PEX is best. Always check manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Basic compression fitting installation steps
1. Start by cutting and deburring the tube to a square face. 2. Next, slide the nut and ferrule onto the pipe in that order. 3. When using soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Start by hand-tightening the nut, then use the two-wrench technique to finish the joint.
Recommended tools and techniques
Use a two-wrench method to hold the fitting body and turn the nut to prevent tube twist. Observe torque recommendations from the fitting maker or Installation Parts Supply when available. Many installers snug by hand, then add a limited number of wrench turns.
Where pipe inserts should be used
Pipe inserts are essential for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Do not install inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Avoid under-tightening and over-tightening. Under-tightening leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Ferrules are usually single-use; plan to replace them when disassembling a joint.
Ferrule removal procedure
Start by isolating the supply and releasing pressure. Grip the fitting body with one wrench while loosening the nut with a second. Remove the compression nut and pull out the ferrule. If the ferrule remains tight, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
3/8 Valve Adapter installation guidance
When working on small 3/8″ valve connections, prepare the tubing the same way and follow the two-wrench technique. The 3/8 Valve Adapter process mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Routine inspection and maintenance
After pressurizing, inspect joints for weeps and tighten slightly if needed. Add routine checks for corrosion and thermal fatigue, particularly on refrigerant circuits. Avoid placing compression joints where vibration will loosen them over time.
| Process Step | Task | Best-Practice Tip |
|---|---|---|
| Preparation | Cut the tube square, deburr, and clean it | Use proper cutting and deburring tools |
| Fit-Up | Slide on the nut and ferrule, then insert into the fitting | Install pipe inserts in soft plastic tubing |
| Tightening | Finger-tighten first, then apply two-wrench tightening | Follow manufacturer torque guidance |
| Test | Test under pressure and check joints | Inspect carefully and adjust only when safe |
| Ongoing Service | Check routinely and change ferrules when joints are opened | Keep spares from Installation Parts Supply for quick repairs |
Conclusion
Choosing the right compression fitting is critical for plumbing and HVAC work. The selected material, whether brass, copper, stainless steel, PVC, or PEX, must fit the service type. That helps maintain reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings provide a leak-free, solder-free solution. They include a nut, ferrule, and body. For a dependable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These techniques help ensure long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For particular installations, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it’s essential to match size and pressure ratings to the task. High-quality components from reputable suppliers matter. A guide from Installation Parts Supply can support in finding compatible fittings and adapters. Regular inspections and proper selection maintain system efficiency and compliance.
In closing, dedicating time to material selection and correct assembly is worthwhile. This supports durable, leak-free connections. It contributes to optimal performance, fewer repairs, and less environmental harm.
